Performance
Characteristics
For airflow
& pressure data please refer to the N.A.T.A. Laboratory Tested Pressure
Drop Data.
Suggested
Specifications

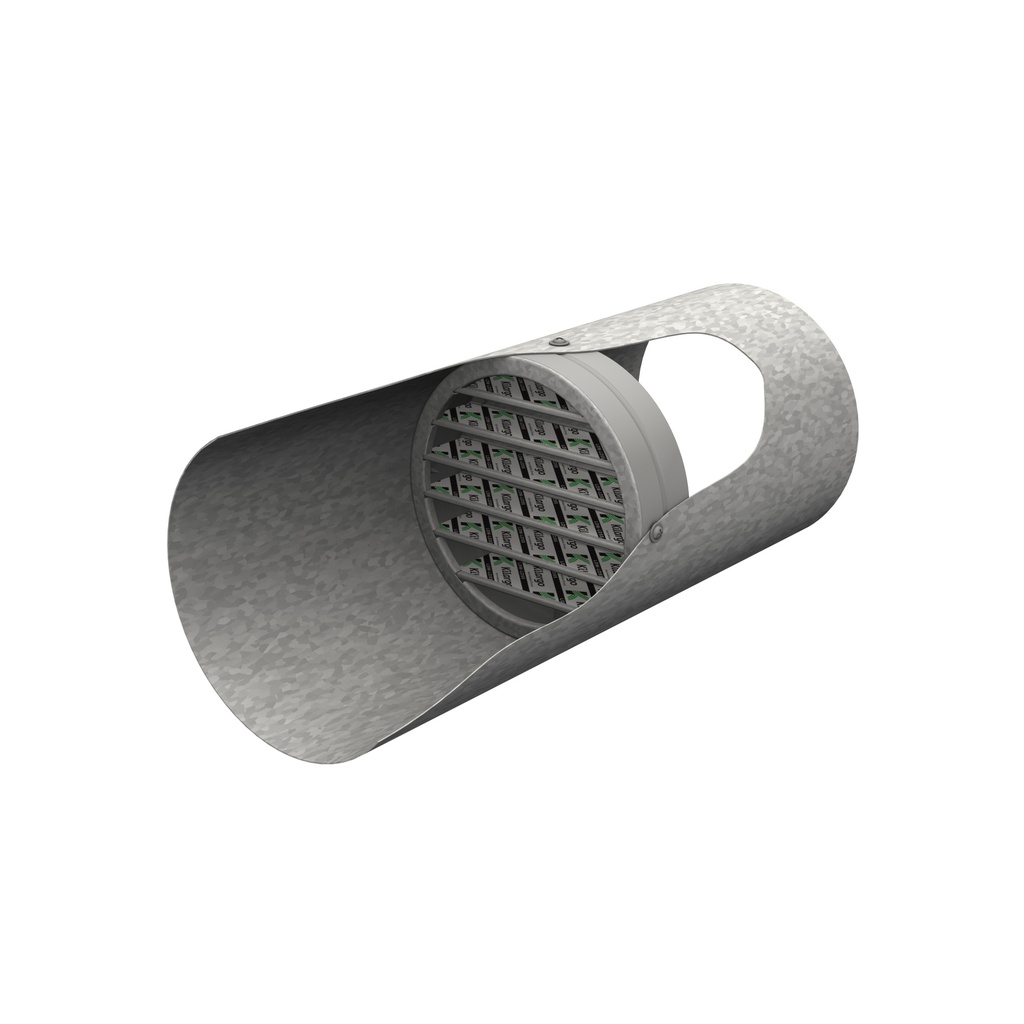

All fire
dampers shall be Kilargo intumescent IFD-LL series, with no moving parts and
allow for bi-directional airflow.
Intumescent
fire dampers shall be tested for Fire Resistance Level (FRL) requirements in
accordance with AS 1530.4:2014 Section 10 & Section 11.
Fire Damper
installation shall be strictly in accordance with the relevant requirements of
AS 1682.2, and Kilargo System Installation details including the use of Kilargo
Intumescent Mastic.
Features
§ High performance, low-loss design
§ Reduced resistance to air-flow
§ Tested to the latest AS1530.4:2014 Section 10 &
Section 11
§ Insulation up to 120 minutes
§ Wide range of compliant installations
§ Installer label included
§ Ezy-Fit Brackets
§ Wall & floor systems
§ Ultra low-maintenance costs.
Technical Data
§ Fire Integrity Rating: 60 / 90 / 120 minutes
§ Insulation Rating: 60 / 90 / 120 minutes
§ Pressure Loss Data – See Curves
§ Sleeve Z275 Galvanised Steel
